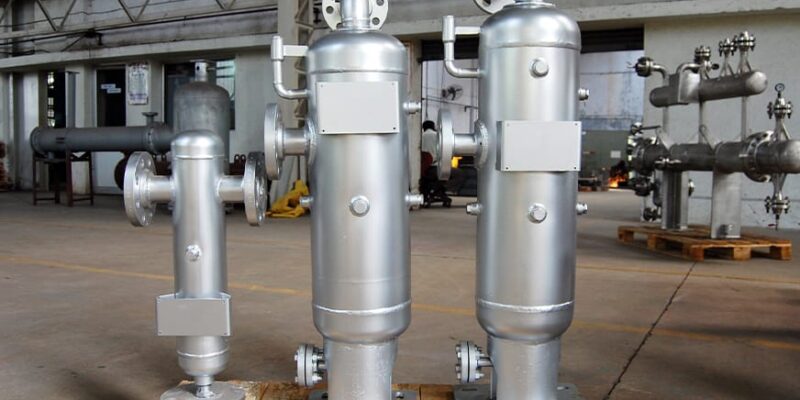

Filtration and Moisture Separation in Industrial Air Equipment

Compressed air is a utility, but it isn’t clean by default. After compression, air often carries particles from intake, condensed water, and oil aerosols from lubricated machines. Left unchecked, those contaminants corrode lines, foul valves, ruin coatings, and quietly drain money through downtime and rejects. Filtration and Moisture Separation in industrial air equipment, done with the right mix of filters, dryers, and separators, turns raw compressed air into a reliable process input. This article breaks down the core technologies, explains how moisture separation protects sensitive tools, and maps practical choices by application. It closes with long-range benefits and maintenance habits that keep air systems efficient and compliant with modern quality expectations.

Types of filters commonly used in compressed air systems

Compressed air contamination typically falls into three main categories:

1. Particles — such as dust, rust, and scale
2. Water — both liquid and vapor
3. Oil — including aerosols and vapors

A robust filtration setup targets each contaminant type with purpose-built filter media designed for specific removal efficiency and flow conditions.

Common Filter Types Include:

• Particulate Prefilters (3–5 µm):
  Capture rust, scale, and dust to protect downstream coalescers and dryers. These are often placed immediately after the air receiver or dryer as the first line of defense.
• Coalescing Filters (0.1–0.01 µm):
  Remove fine aerosols of oil and water by merging droplets into bulk liquid that drains away. High-efficiency coalescers achieve very low oil carryover, meeting ISO 8573-1 Class 1–2 oil content standards.
• High-Efficiency Particulate Filters (HEPA-like, submicron):
  For critical applications, these submicron filters eliminate residual solids that could damage sensitive instruments or compromise product quality and finish.
• Activated Carbon Filters:
  Adsorb oil vapors and odors, providing a polishing stage for food, beverage, pharmaceutical, and paint applications. Typically installed after a coalescing filter to prevent premature saturation.
• Sterile / Steam-Sterilizable Filters (e.g., 0.2 µm PTFE/PES):
  Deliver bioburden control for sanitary compressed air in pharmaceutical and food-contact environments. These are generally installed at the point of use with validated maintenance and replacement practices.
• Compressor Intake Filters:
  Large surface-area filters that capture ambient dust and debris before it enters the compressor, reducing wear and extending the life of downstream filters.

System Design and Staging

Compressed air filters are most effective when staged in sequence—starting with a coarse prefilter, followed by a coalescer, and optionally a carbon stage. In high-purity applications, a sterile or submicron filter may be installed near the end use for final polishing.

Correct staging not only ensures air quality but also maintains low pressure drop and maximizes filter element life.

For expert guidance on designing or upgrading your compressed air filtration system, visit PneuTech — a trusted source for high-performance air treatment and efficiency solutions.

Moisture separation as a safeguard for sensitive tools

Moisture is relentless. Hot compressed air leaves the compressor saturated: as it cools in piping, liquid water condenses. That liquid washes lubricants out of air tools, pits cylinders, and blisters paint. Moisture separation removes bulk water quickly and dries the remaining vapor to a safe dew point.

Key components and how they work:

• Aftercooler and cyclonic separator: Immediately after compression, an air- or water-cooled aftercooler drops temperature, and a cyclone knocks out bulk liquid water and oil. An automatic drain prevents re-entrainment.
• Refrigerated dryer: Delivers a typical pressure dew point around +3 °C/+38 °F, sufficient for most general manufacturing, packaging, and assembly. It prevents liquid water from forming in lines under normal indoor conditions.
• Desiccant (adsorption) dryer: Achieves very low dew points (−40 °C/−40 °F or lower) for instrumentation, outdoor piping in winter, and processes where even trace moisture causes defects or freezing.
• Membrane dryer: Compact, lower-flow option for point-of-use or remote instruments.

For sensitive tools, spray guns, pneumatic positioners, robot grippers, precision air bearings, stable, dry air stops corrosion and sticking, preserves surface finish quality, and keeps tolerances tight. In short: separate bulk water early, then choose the dryer that fits the dew point risk.

Protecting downstream processes from particulate contamination

Particles don’t just scratch bores and chew seals: they hitchhike into products. In powder coating, stray grit leaves craters. In electronics, debris under conformal coatings becomes latent field failures. In pharma packaging, particulates raise compliance flags. The fix is layered filtration matched to process risk.

A practical strategy:

• Set a target quality using ISO 8573-1 (Particles:Water:Oil). Many facilities run general plant air around Class 4:4:4: instrumentation air trends to Class 2–3 for particles and water: high-purity packaging or painting may call for Class 2:2:1 or better. The exact class depends on the process and regulation.
• Place a robust particulate prefilter upstream to stop rust and scale shed by receivers and black steel piping.
• Follow with a high-efficiency coalescer to capture fine aerosols that otherwise carry particles and oil forward.
• Add a polishing filter at the point-of-use: submicron particulate filtration for instrumentation, activated carbon for odor-sensitive lines, or sterile filtration where hygienic air is required.

Two details keep systems dependable: automatic drains that actually work, and pressure-drop indicators on filter housings. Drains prevent the very re-entrainment that trashes downstream filters. Differential pressure gauges show when elements are loading up so they can be changed before particles bypass or media collapses.

Long-term benefits of effective air filtration strategies

Effective filtration and moisture separation pay back in ways that are both obvious and quiet:

• Less downtime and repair: Dry, clean air extends seal, valve, and actuator life. Tool rebuild intervals stretch, maintenance crews chase fewer nuisance faults.
• Higher first-pass yield: Paint finishes stay smooth, packaging lines avoid misfires, and precision assembly doesn’t fight sticky cylinders or contaminated blow-off.
• Energy stability: Correctly sized, low-ΔP filtration reduces the urge to “crank up” system pressure to mask restrictions. As a rule of thumb, every 2 psi of unnecessary pressure costs roughly 1% in compressor energy.
• Compliance and audit readiness: Documented air quality (dew point, oil content, particle counts) aligns with customer specs and industry standards, especially in food, beverage, and pharma.
• Longer equipment life: Dry piping corrodes less. Receivers, dryers, and instruments last longer when not flooded with carryover.

When lifecycle costs are tallied, energy, maintenance, rejects, and downtime, well-designed air treatment often returns its investment faster than expected.

Choosing the right filter technology for each application

Good selection starts with clarity about risk, required air quality, and real operating conditions, not nameplate numbers.

A step-by-step approach:

1. Define the target quality. Use ISO 8573-1 classes as a common language. For example, general assembly may accept Class 4:4:4, while robotic painting might need Class 2:3:1 plus carbon polishing.
2. Map contamination sources. Oil-lubricated compressors add aerosol/vapor load: old black pipe sheds scale: humid climates spike water load seasonally.
3. Size for actual flow and temperature. Convert to standard conditions (scfm) and select housings/elements to keep initial pressure drop low, with space for growth. Oversized housings usually pay back in energy savings.
4. Stage filters correctly. A 5 µm prefilter protects the coalescer: the coalescer precedes activated carbon so vapor adsorbents aren’t blinded by liquid oil: add point-of-use polishers only where needed.
5. Choose drying technology by dew point risk. Refrigerated dryers handle most indoor plant air. Desiccant dryers cover freezing or moisture-sensitive lines: consider purge-optimized or heatless/heat-regenerated designs based on energy trade-offs.
6. Mind materials and features. Aluminum vs. stainless housings, bowl guards for safety, no-loss drains, differential pressure gauges, and modular manifolds all affect reliability and maintenance.

Example: A CNC cell cluster at 200 scfm needing clean, dry air for valves and mist collection might run prefilter + refrigerated dryer + high-efficiency coalescer at the header, then a point-of-use particulate polisher at each machine.
